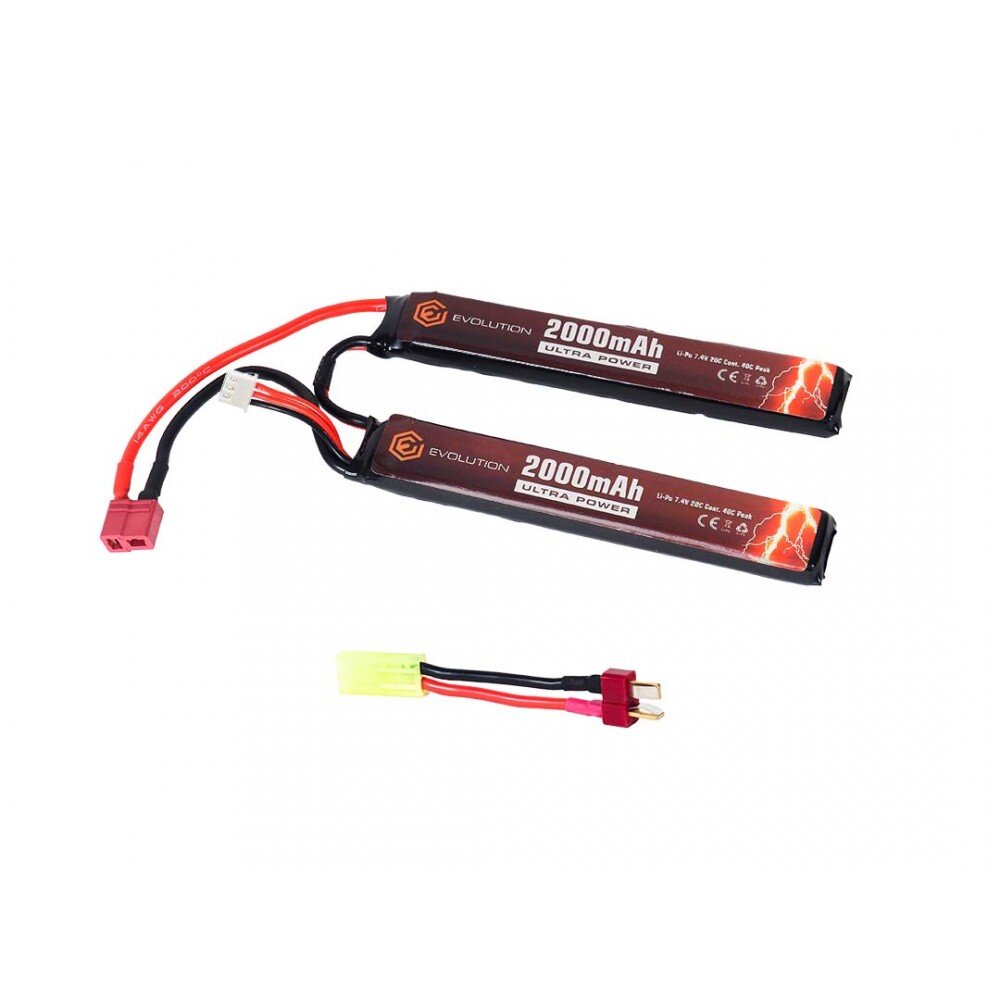

EVOLUTION SOFTAIR LI-PO BATTERY ULTRA POWER - 7.4V - 2000MAH - 20C - 40C PEAK

Technical specifications

Nominal voltage: 7.4V (2S – two cells in series)

Capacity: 2000mAh

Continuous discharge rate: 20C (40A)

Peak discharge rate: 40C (80A)

Type: Long stick – ideal for replicas with generous space (ex: M4 with long buffer tube)

Connector: Deans

Estimated weight: ~150g

Dimensions: 126x21x10.2mm

Associated hazards and risks

Deep discharge: below 3.0V/cell → irreversible damage to the battery

Overcharge: above 4.2V/cell → risk of swelling, fire or explosion

Excessive current: exceeding the 20C limit → overheating, fire risk

Knocks or punctures: can lead to chemical reactions violent and ignition

Extreme temperatures: 60°C → risk of explosion; <0°C → reduced performance and risk when charging

Unattended charging: fires may occur; charging under supervision and in a fireproof bag is recommended

Unsafe storage: completely discharged or connected to the replica can lead to damage; ideally ~3.8V/cell, in a cool place and away from fire

Safety recommendations

Use dedicated Li-Po chargers, with balancing

Disconnect the battery from the replica immediately after use

Check and maintain the appropriate charge level for storage (~3.8V/cell)

Store the battery in a cool place, away from short circuits and fire. Ideally, in a fireproof bag

Do not use or charge damaged, swollen or deformed batteries
