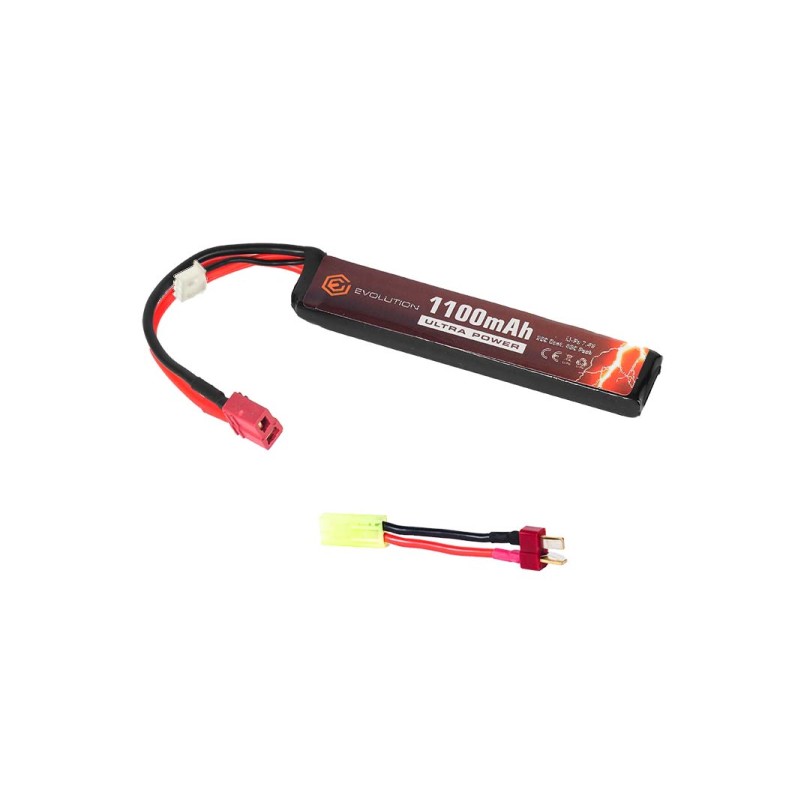

EVOLUTION 7.4V - 1100 MAH LI-PO BATTERY ULTRA POWER - 7.4V - 1100MAH - 20C - 40C

Technical specifications

Nominal voltage: 7.4V (2S – two cells in series)

Capacity: 1100mAh

Continuous discharge rate: 20C

Peak discharge rate: 40C

Connector: Mini Tamiya (Mini‑Type)

Estimated weight: 42g

Dimensions: 110x20x6mm

Associated hazards and risks

Deep discharge: below 3.0V/cell → irreversible damage to the battery.

Overcharge: above 4.2V/cell → risk of swelling, fire or explosion.

Excessive current: exceeding the 20C limit → overheating, risk of fire.

Impacts or punctures: can lead to violent chemical reactions and ignition.

Extreme temperatures: 60°C → risk of explosion; <0°C → reduced performance and risk of charging.

Unattended charging: fires may occur; supervised charging and in a fireproof bag are recommended.

Unsafe storage: fully discharged or connected to the replica can lead to damage; ideally ~3.8V/cell, in a cool place and away from fire.

Safety recommendations

Use dedicated Li-Po chargers, with balancing.

Disconnect the battery from the replica immediately after use.

Check and maintain the appropriate charge level for storage (~3.8V/cell).

Store the battery in a cool place, away from short circuits and fire. Ideally, in a fireproof bag.

Do not use or charge damaged, swollen or deformed batteries.
